Ningbo Simple Trading Co., Ltd. is one of the most reliable manufacturers and suppliers of u-cut open-front container in China, also supports custom service. Welcome to wholesale bulk high-grade u-cut open-front container from our factory. Quality products and punctual delivery are available.
| Item | Specification |
|---|---|

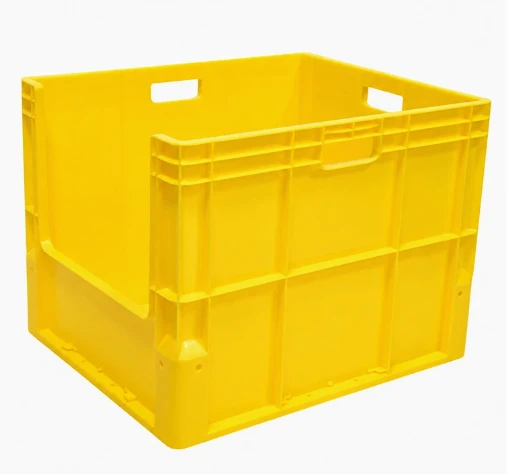

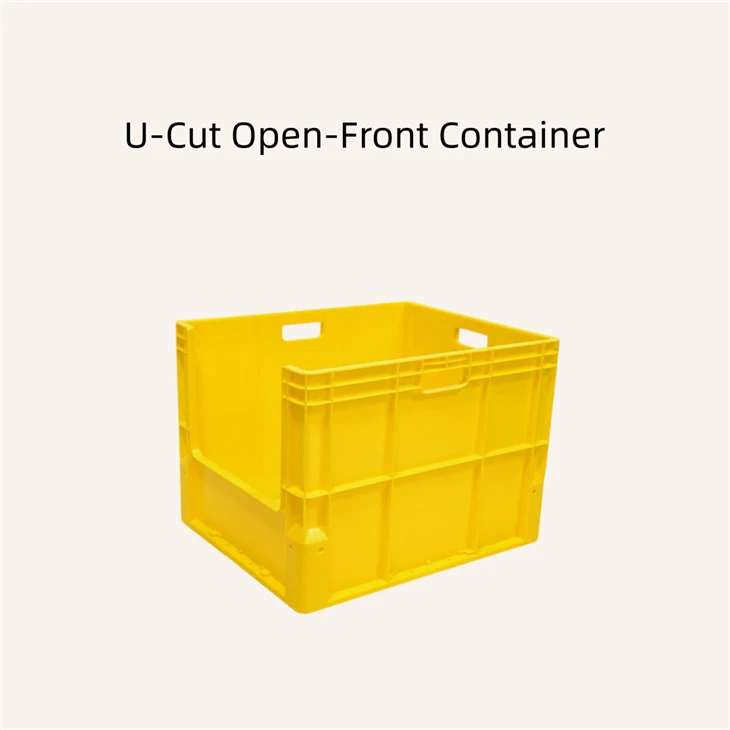

| Product Name | U-Cut Open-Front Container |
| Material | HDPE |
| Volume | 117 L |

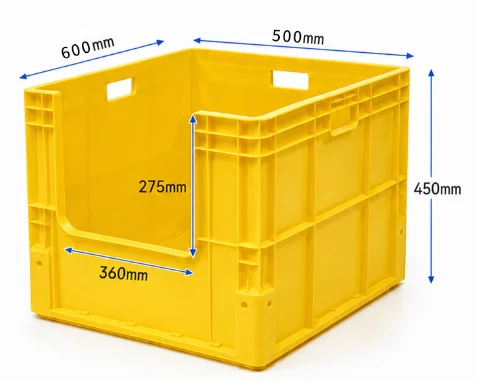

| External Dimensions | 600 × 500 × 450 mm |
| Internal Dimensions | 566 × 465 × 445 mm |
| Front Opening | 360 × 275 mm |
| Weight | 4 kg |
| Load Capacity | 50 kg |
| Stacking Load | 100kg |
| Colour | Ivory / Rock Grey / Red / Yellow / Blue |
Product Features
Material: Made of brand new HDPE high-density polyethylene material, it is resistant to high and low temperatures, corrosion and moisture, strong and pressure resistant, food-grade, environmentally friendly and recyclable
U-Shaped Front Opening of 360 × 275 mm
The opening is cut into the front panel above a closed retaining wall, so goods can be taken out while the container remains in the stack. In a store where containers stand several tiers high, this removes the need to unstack a column and rebuild it in order to reach the contents.

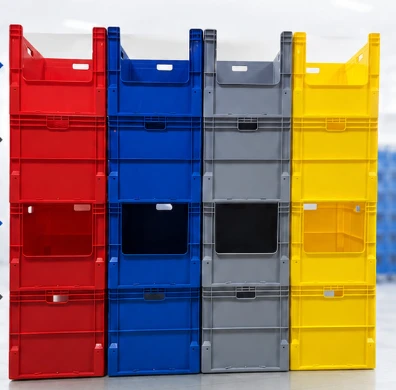

Stacking Rim with a 100 kg Load Rating
The top rim is formed to receive the base of the container placed above it, so the stack aligns as it is built rather than being adjusted afterwards. The load passes down the corner posts to the floor rather than through the panels, and the rated stacking load is 100 kg, which corresponds to two loaded containers above each base unit. Misalignment is the usual cause of a collapsed column in a busy store, and the moulded location removes it at the moment of stacking.
Moulded Handholds on Two Sides
Handholds are formed into two opposing walls rather than added as fittings, so a loaded container can be lifted from both sides by two operators, or tipped and carried by one. The handholds do not work loose and present no metal edge to damage goods or hands.
Thickened Body Walls
The wall sections are specified thicker than those of a standard transport crate, which is what allows the container to keep its shape when it is dragged across a loading bay or knocked against racking. Deformation at the corner is the usual reason a stacking container is withdrawn from service.
Common Applications
Bulk storage areas in warehouses:

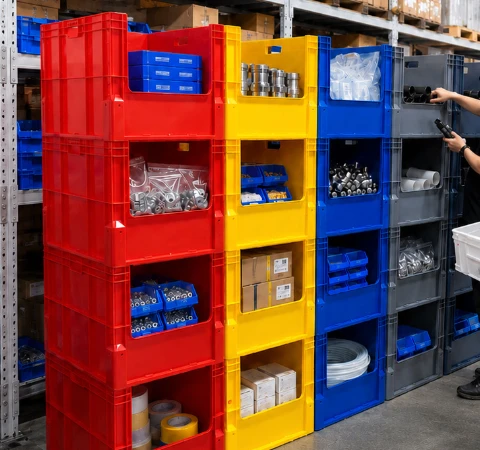

In the bulk storage area, containers stand several tiers high and hold fittings, castings and packed components, with the U-shaped opening allowing stock to be drawn without dismantling the column.
Assembly and kitting stations:
At the assembly station, the container holds every component for one build sequence in a fixed position, and the open front keeps the parts within reach without the operator leaving the position.
Hardware and fastener stores:
In a fastener store, the 50 kg rating allows dense hardware to be held in bulk, and the closed lower front keeps small items from spilling when the container is moved between racks.
Packing and dispatch areas:
At the packing bench, the container acts as the buffer between picking and cartoning, and the opening allows items to be taken out in the order in which they were loaded.
Automotive parts stores:
In an automotive parts store, the five colours separate stock by vehicle programme or by customer, and the opening allows line-side replenishment without the container being lifted from the stack.
FAQ
Q: Can the colour and the label be specified?
A: Ivory, rock grey, red, yellow and blue are produced as standard, and other colours are available for volume orders. The front panel above the opening provides a flat area for a printed label or barcode.
Q: What are the dimensions, weight, volume and load rating?
A: External dimensions are 600 × 500 × 450 mm, internal dimensions are 566 × 465 × 445 mm, the front opening measures 360 × 275 mm, usable volume is approximately 117 litres, unit weight is 4 kg and the rated load is 50 kg.
Q: How many containers may be stacked when they are loaded?
A: The container bears a stacking load of 100 kg on its top rim. With a rated load of 50 kg per container, that corresponds to two loaded containers standing above it, or three loaded tiers in total. Where containers are only partly filled, a higher stack is possible; please confirm the intended load per container before a stack height is planned.
Q: What is the minimum order quantity, how are the bins packed, and what is the lead time?
A: MOQ and lead time depend on the size mix, colour and printing requirements. Containers are nested for shipment where the geometry allows. Please provide the target quantity and destination port, and all three parameters will be confirmed together.
Q: Is the container suitable for cold stores?
A: Yes. The body is moulded in HDPE, which retains its toughness at low temperatures, so the container resists impact without becoming brittle. Please advise the operating temperature and the handling method, and the suitable grade will be confirmed.
