Ningbo Simple Trading Co., Ltd. is one of the most reliable manufacturers and suppliers of grid deck plastic pallet in China, also supports custom service. Welcome to wholesale bulk high-grade grid deck plastic pallet from our factory. Quality products and punctual delivery are available.
|
Technical Data |
|
|
Size |
1200*1000*150 mm (±5 mm) |
|
Dynamic load |
1000KG |
|
Static load |
4000KG |
| Racking load |
1000KG |
|
Weight |
12KGS |
|
Material |
HDPE |
|
Operation Temp |
-40℃ ～ 60℃ |
|
Color |
Blue |
Product Features
Material: Made of brand new HDPE high-density polyethylene material, it is resistant to high and low temperatures, corrosion and moisture, strong and pressure resistant, food-grade, environmentally friendly and recyclable.
Load Ratings of 1000 kg Dynamic, 4000 kg Static and 1000 kg Racking
A 12 kg pallet carrying 1000 kg in motion and 4000 kg at rest: the three ratings cover the three ways a pallet is actually used - moving with a load on it, standing loaded on the floor, and spanning racking beams without support underneath. A single figure cannot describe all three, and buyers who compare only one number frequently specify the wrong pallet.

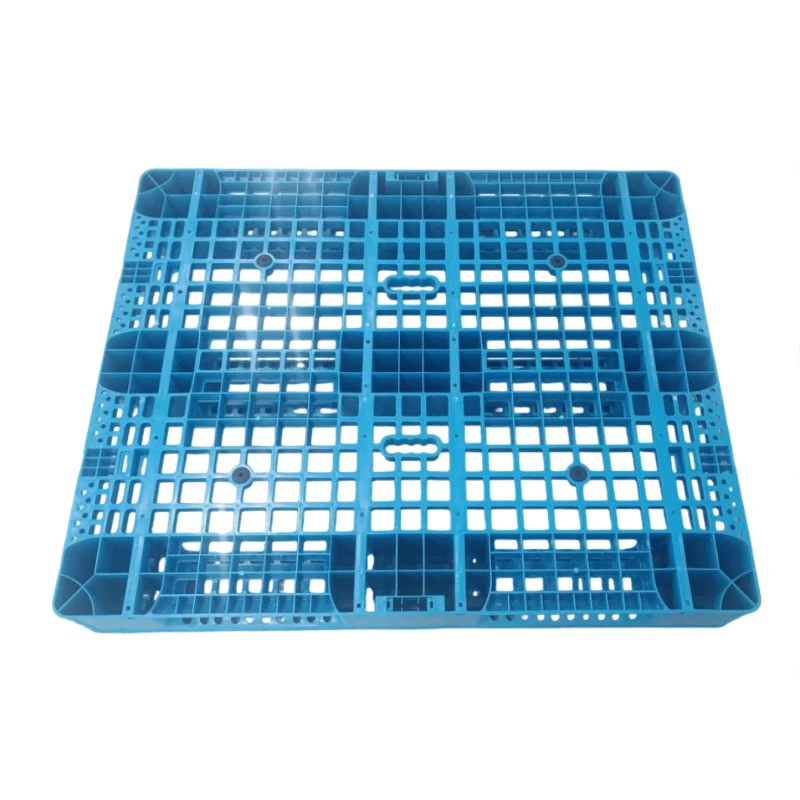

Open Grid Deck : The deck is an open grid rather than a closed plate, so water drains through and air passes across the load face. In cold stores, wash-down areas and food handling this limits the moisture that collects between the pallet and the goods, and it reduces the material in the deck without losing stiffness.
Four-Way Entry: Forks can enter from either the 1200 mm or the 1000 mm face, which allows a pallet to be picked from the accessible side in a crowded aisle rather than being repositioned first. In receiving areas and dispatch lanes this removes a handling step from every movement.
Anti-Slip Plugs at the Load Contact Points: Rubber plugs are fitted into the deck grid at the points where the load bears, so a carton or bag sits on a high-friction surface rather than on bare plastic. Load shift in transit is the common cause of damaged consignments, and the plugs address it at the interface rather than by adding stretch film.

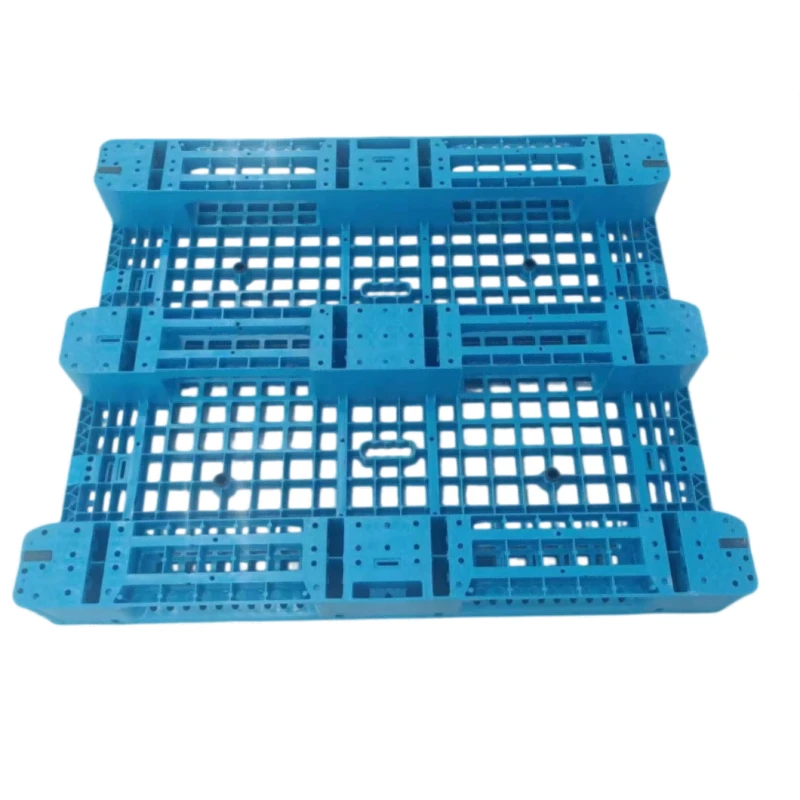

Three Continuous Runners: The underside is formed as three runners running the full width of the pallet, which distributes the load along the floor, protects the deck from ground contact and provides the structure into which the fork entries are cut. Continuous runners also stop the pallet from rocking on an uneven surface, which matters when loads are stacked.
Common Applications
Racking aisles in warehouses: In the racking aisle, the pallet spans the beams with a 1000 kg racking rating, and the steel-reinforced base prevents the underside from bowing between supports.
Production lines and automated conveyors:On a production line, the moulded dimensions are consistent from pallet to pallet, which matters where the pallet runs on conveyors, chain transfers or automatic wrappers.
Cold stores and freezer rooms: In a cold store, the moulded body does not absorb moisture or delaminate at low temperature, and the open deck prevents ice from bonding the load to the pallet face.
Wholesale markets and distribution centres:In a wholesale market, four-way entry allows a pallet truck to pick the load from whichever side is clear, which speeds up handling in dense, mixed storage.
Food processing and wash-down areas:On a wash-down floor, the open grid drains freely and the pallet can be cleaned in place, with no timber to harbour bacteria and no fasteners to corrode.
Export container loading:On an export lane, the pallet needs no ISPM 15 treatment or mark, which removes a documentation step and a border inspection risk from every consignment.
FAQ
Q: What are the dimensions, weight and load ratings?

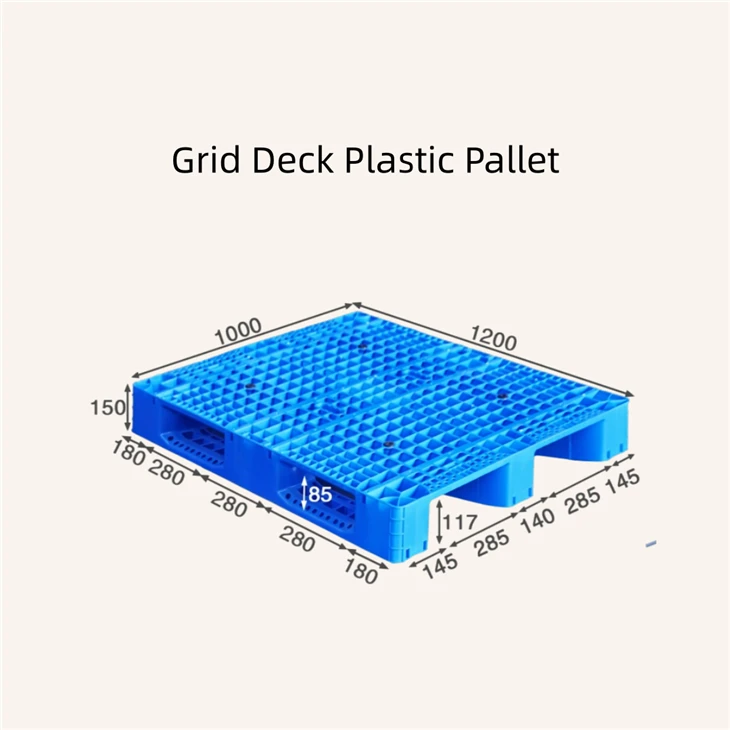

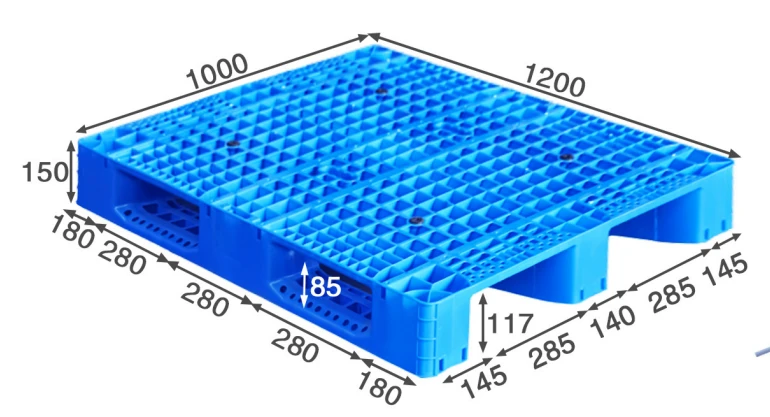

A: The pallet measures 1200 × 1000 × 150 mm and weighs 12 kg, with 10 steel tubes, four in the deck and six in the base. Dynamic load is 1000 kg, static load 4000 kg and racking load 1000 kg.
Q: What is the difference between dynamic, static and racking load?
A: Dynamic load is the weight the pallet carries while being moved by forklift or pallet truck. Static load is the weight it bears standing on the floor, including the load of pallets stacked above it. Racking load is the weight it carries spanning two beams with no support underneath, which is normally the lowest of the three.
Q: Is the pallet suitable for racking?
A: Yes, at a racking load of 1000 kg, provided the pallet is supported on two beams of adequate section and the load is evenly distributed. Please confirm the beam spacing and the load per pallet, and the suitability for your racking configuration will be confirmed.
Q: Are the steel tubes fitted before shipment?
A: The pallet is supplied with the tubes fitted, and the tubes are inserted into moulded channels in the deck and the base. Where a customer prefers to fit them locally, loose tubes can be quoted separately.
Q: What is the minimum order quantity, how are the pallets loaded, and what is the lead time?
A: MOQ and lead time depend on colour and any marking requirement. Pallets stack for shipment, and the loading quantity per 40HQ depends on the tube configuration; please provide the target quantity and destination port, and all three parameters will be confirmed together.
